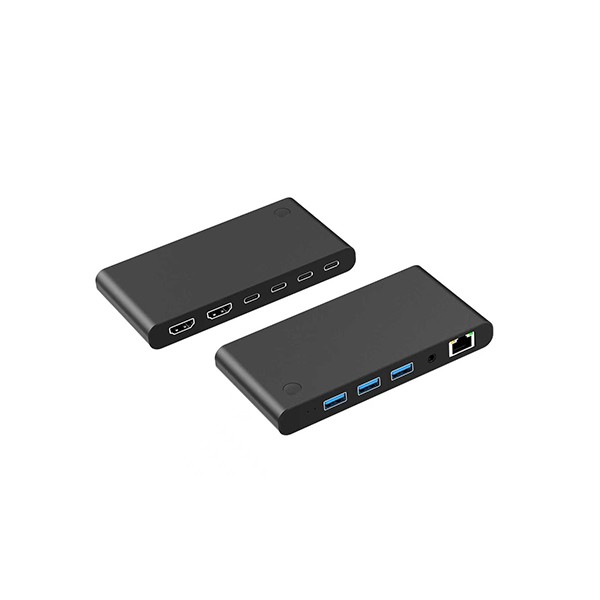

USB-C Multi-functional KVM Docking Station Model No.: KVM092

Specification

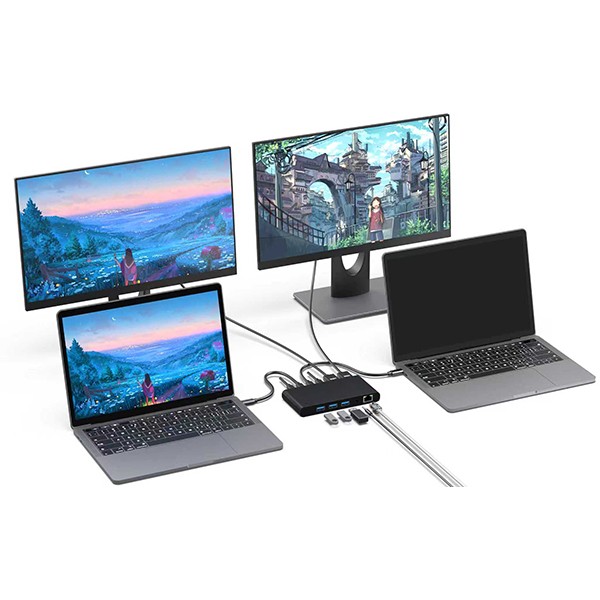

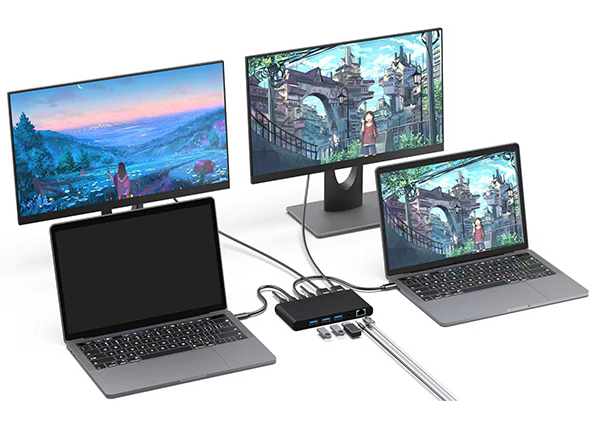

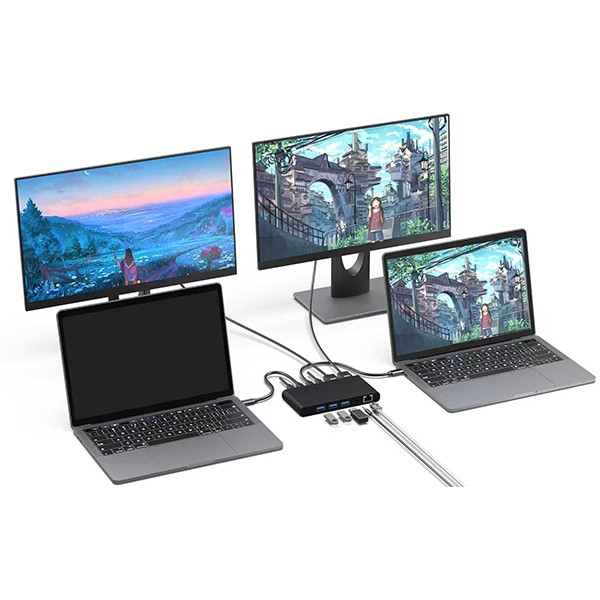

• This USB-C KVM Switch allows 2 Laptops/ Pad to share all of the external USB devices and external
  displays.

• Easy to use by pressing the switch button on the KVM docking station.

• With 2*HDMl output ports for TV or monitors. HDMl 2.1 spec. supports video resolution up to 8K

• Backward compatible with HDMl 2.0 and HDMl 1.4.

• USB 3.0 hub for connecting mouse, keyboard, printer and more.

• 3.5mm audio jack for connecting headphones or speakers.

• RJ45 Ethernet: 10/100/1000Mbps auto-sensing

• Two PD charging ports allow charging for both laptops simultaneously.

• Self-powered via connected laptop, no external power required

• Plug & Play: No driver installation required.

• Durable Aluminum alloy casing, also efficiently dissipate heat.

• USB-C Upstream Port: Supports DP Alt Mode and data transfer, 15W power delivery

• 3x USB 3.0 ports:
  5Gbps data transfer (backward compatible with USB 2.0)
  Each port supports up to 5V/0.9A charging

• 2x USB-C PD charging ports (PD3.0 compliant), each supporting up to 100W

• HDMI: Single display output supports 8K@30Hz

• Supporting 4K60Hz under MST mode.

• RJ45 Ethernet: 10/100/1000Mbps auto-sensing

• 3.5mm Audio Jack: Stereo output + microphone input

• Switch button: Manual Switch between PC1 and PC2 (switches data/video to corresponding PC)




Power Supply

• USB C Upstream x2

• USB 3.0 download port x3

• Type C PD3.0 Charging port x2

• HDMI2.1 x2

• RJ45 (GIGA) x1

• 3.5mm Audio/Mic x1

Environmental

Operating Temperature 0 °C to +45°C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10°C to +70°C
Storage Humidity 5% to 90% RH (no condensation)

Power Supply

USB-C Female Port Up to 100W (20V/5A)
