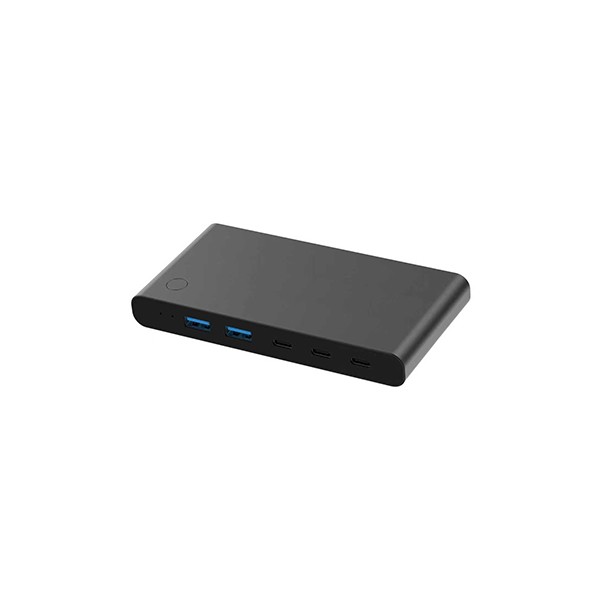

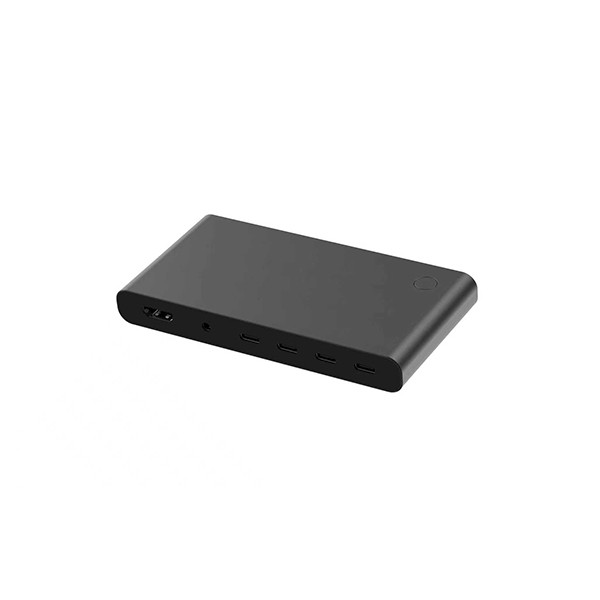

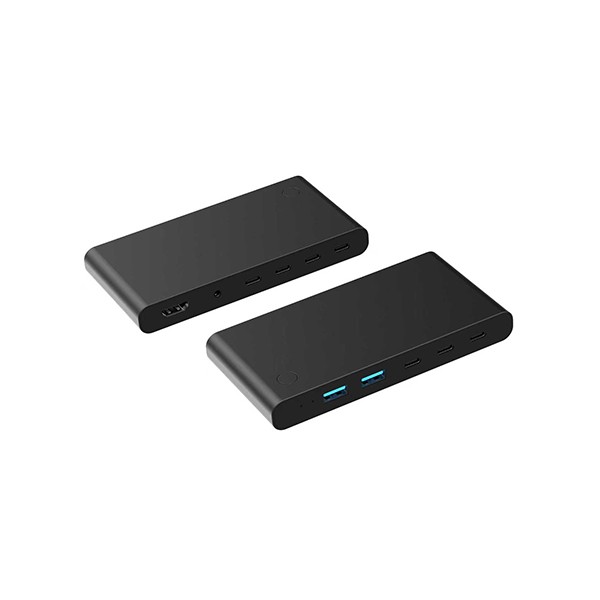

USB-C Multi-functional KVM Docking Station Model No.: KVM091

Feature:

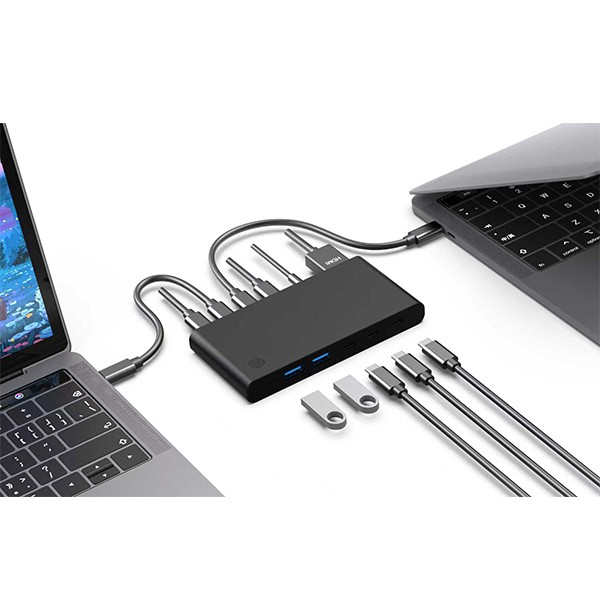

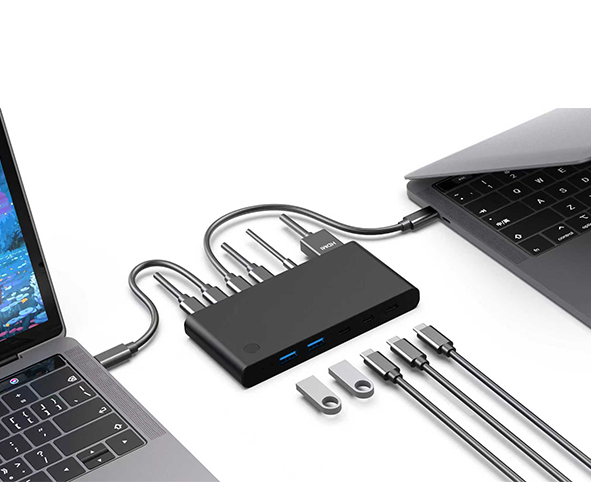

This USB-C KVM Switch allows 2 Laptops/ Pad to share all of the external USB
devices and external
displays.
Easy to use by pressing the switch button on the KVM docking station.
With HDMl output ports for TV or monitors. HDMl 2.0 spec. supports video
resolution up to 4K60Hz
Backward compatible with HDMl 1.4.
USB 3.0/Type C ports hub for connecting mouse, keyboard, printer and more.
3.5mm audio jack for connecting headphones or speakers.
Two PD charging ports allow charging for both laptops simultaneously.
Self-powered via connected laptop, no external power required
Plug & Play: No driver installation required.

Product port:

--- USB C Up-stream x2
---USB 3.0 down-stream port x3
---Type C Gen1 down-stream port x2
---Type C PD3.0 Charging port x1
---Type C PD3.0 Charing +Data Transfer Combo port x1
---HDMI2.0 x1
---3.5mm Audio/Mic x1

Specifications:
*USB-C Upstream Port: Supports DP Alt Mode and data transfer
*1x Type C PD3.0 100W charging port
*1x Type C PD3.0 100W charging and USB3.0 Speed Data Transfer Combo port.
*3x USB3.0 A ports: 5Gbps data transfer speed max. (backward compatible with USB
2.0)
*2x USB3.2 Gen1 Type C ports: 5Gbps data transfer speed max. (backward
compatible with USB 2.0)
*2x USB-C PD charging ports (PD3.0 compliant), each supporting up to 100W
*HDMI: Single display output supports 4K60Hz
*3.5mm Audio Jack: Stereo output + microphone input
*Switch button:
▪ Short press to toggle between PC1 and PC2 (switches data/video to
corresponding PC)
OS system
Windows 10 or above, Mac OS, Computer with Thunderbolt 3 port
USB-C Computer with USB3.1 with data transfer
USB-C Power Delivery and Video Alternate Mode

Environmental
Operating Temperature 0 ℃ to +45℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +70℃
Storage Humidity 5% to 90% RH (no condensation)

Power Supply
USB-C Female Port Up to 100W (20V/5A)
