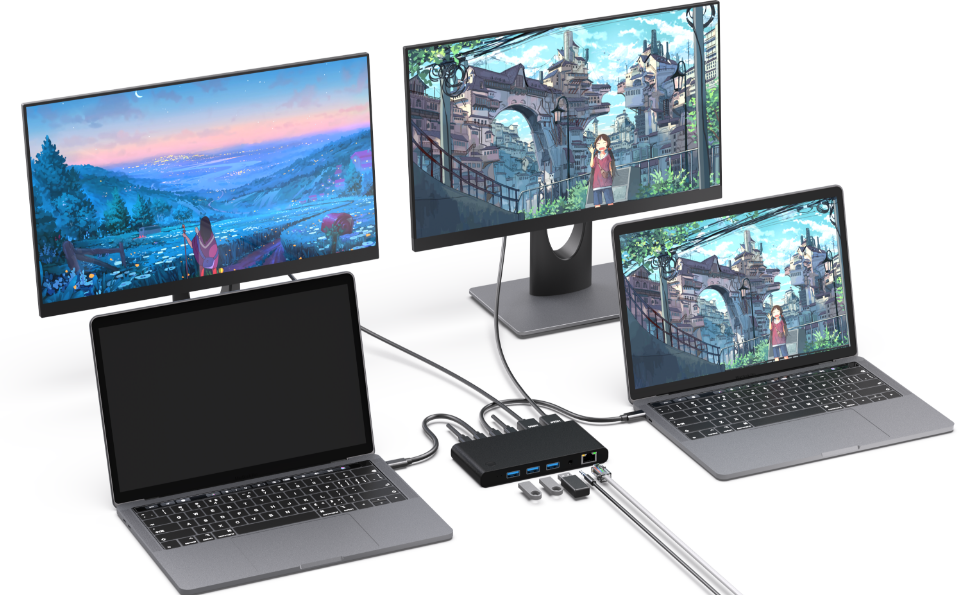

*This USB-C KVM Switch allows 2 Laptops/ Pad to share all of the external USB
devices and external
displays.
*Easy to use by pressing the switch button on the KVM docking station.
*With 2*HDMl output ports for TV or monitors. HDMl 2.1 spec. supports video
resolution up to 8K
*Backward compatible with HDMl 2.0 and HDMl 1.4.
*USB 3.0 hub for connecting mouse, keyboard, printer and more.
*3.5mm audio jack for connecting headphones or speakers.
*RJ45 Ethernet: 10/100/1000Mbps auto-sensing
*Two PD charging ports allow charging for both laptops simultaneously.
*Self-powered via connected laptop, no external power required
*Plug & Play: No driver installation required.
*Durable Aluminum alloy casing, also efficiently dissipate heat.
Product port
--- USB C Upstream x2
---USB 3.0 download port x3
---Type C PD3.0 Charging port x2
---HDMI2.1 x2
---RJ45 (GIGA) x1
---3.5mm Audio/Mic x1
Specifications:
*USB-C Upstream Port: Supports DP Alt Mode and data transfer, 15W power
delivery
*3x USB 3.0 ports:
▪ 5Gbps data transfer (backward compatible with USB 2.0)
▪ Each port supports up to 5V/0.9A charging
*2x USB-C PD charging ports (PD3.0 compliant), each supporting up to 100W
*HDMI: Single display output supports 8K@30Hz
*Supporting 4K60Hz under MST mode.
*RJ45 Ethernet: 10/100/1000Mbps auto-sensing
*3.5mm Audio Jack: Stereo output + microphone input
*Switch button:
▪ Short press to toggle between PC1 and PC2 (switches data/video to
corresponding PC)
OS system
Windows 10 or above, Mac OS, Computer with Thunderbolt 3 port
USB-C Computer with USB3.1 with data transfer
USB-C Power Delivery and Video Alternate Mode
Environmental
Operating Temperature 0 ℃ to +45℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +70℃
Storage Humidity 5% to 90% RH (no condensation)
Power Supply
USB-C Female Port Up to 100W (20V/5A)
">
